Overview
Compact 1300×900mm precision ball screw CO2 laser cutting system offering superior cut edge quality and minimal footprint.
Key Advantages
This equipment incorporates advanced industrial-grade optics and heavy-duty mechanical engineering, offering the following key advantages:
Rigid Ball Screw Motion System: Upgraded from belt drive to ball screw for zero wave ripples on delicate small radius cuts
Enclosed Protective Cover: Full safety enclosure with CE-certified observation window protecting operators from fumes and beam reflections
Dual Air Assist Control: Independent automated solenoid valves for high-pressure cutting gas and low-pressure lens cooling
High Electro-Optical Conversion: Premium CO2 optical cavity delivers consistent beam quality M2 < 1.1
[Factory Live] SG-1390 High Power Ball Screw Precision CO₂ Laser Cutting Machine Industrial Laser System
Sample Gallery
High-precision test samples processed by this machine:
Cast Acrylic Sheet Precision Edge Cutting
Mirror-polished 90-degree edge finish straight off the machine without secondary flame polishing.

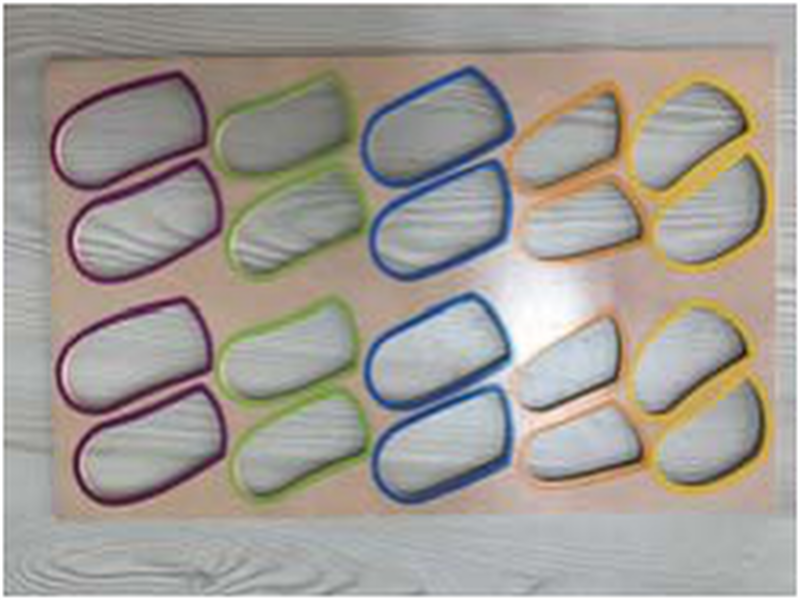

Hardwood & Architectural Plywood Complex Contouring
Ultra-narrow kerf width, sharp corner definition, and minimal thermal discoloration.
Flexible Garment Fabric & Leather Automated Nesting
Clean sealed edges without fraying, high repeat accuracy across multi-layer stacks.

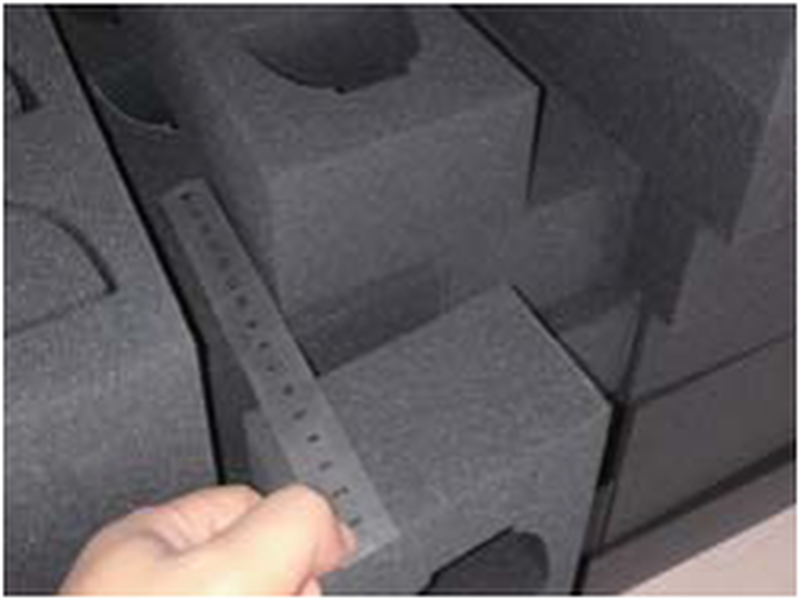

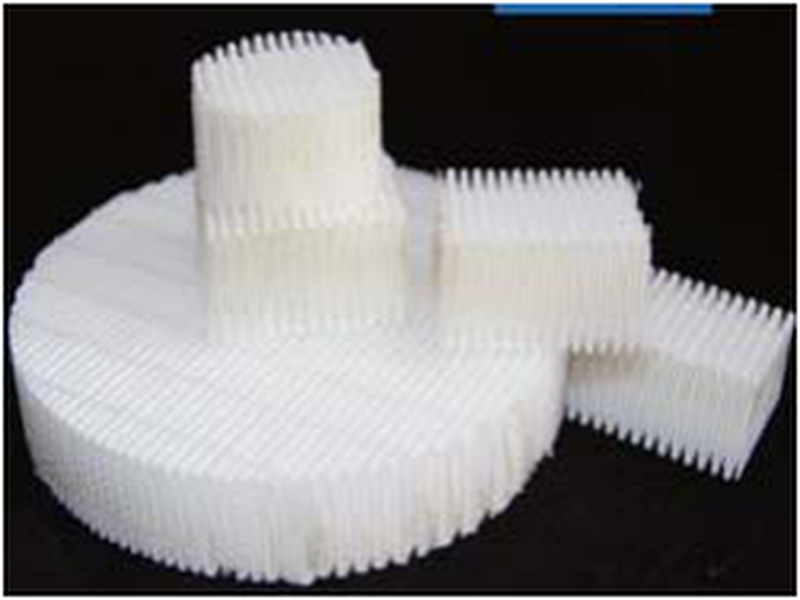

Composite Die-Board & Gasket Precision Cutting
Perpendicular vertical kerf channels ensuring tight friction-fit tooling.
Technical Specifications
* Note: Parameters listed are standard factory configurations. Custom engineering and automated production line integrations are available upon request.
Applicable Materials & Industries
❖ Applicable Materials
Acrylic & Plexiglass Wood & MDF ABS & Engineering Plastics Leather & Synthetic Fabrics Cardboard & Paperboard
❖ Target Industries
Trophy & Award Engraving Retail Merchandising Displays Model Making & Prototyping Precision Gasket Manufacturing Gift & Decorative Goods
Request a Quote & Testing
Schedule Free Sample Testing and Engineering Consultation for SG-1390 High Power Ball Screw Precision CO₂ Laser Cutting Machine
Our industrial laser application laboratory is equipped with high-magnification optical inspection instruments. We provide customized microscopic edge analysis reports, cycle time estimates, and competitive turnkey equipment quotes within 24 hours.
